EFS Suspension Range

Check out the broad range of  EFS of suspension components offered to enhance your 4x4.

efs shock absorbers

EFS Enforcer Series

EFS Enforcer Series

EFS Enforcer Series


 EFS Enforcer is designed for the price conscious 4wd enthusiasts,  who need a shock absorber that gets the job done. 51mm External Tube  -For greater oil capacity & to keep the valve at a lower operating  temperature.

Specifications


  • Low Pressure Nitrogen Gas -To prevent the oil from cavitation (foaming)
  • Long Travel Design -To maximise wheel travel when a vehicle is raised and increase articulation
  • 32mm Piston, Twin Tube Construction - Greater control of the spring during the rebound and compression cycles
  • 15mm Quality Hardened Chromed Piston Rod -Increased durability
  • 1.2mm Outer and Inner Wall Thickness -For greater durability and strength
  • Dynamic Motion Control Technology - Adjusts to different road and off road conditions
  • High Quality Internal & External Components - To prevent  fade under harsh conditions and long life poly bushes for durability

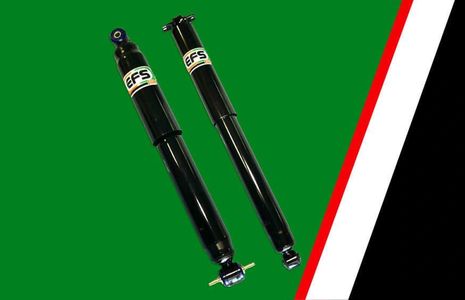

EFS Elite Series

EFS Enforcer Series

EFS Enforcer Series




The EFS Elite Shock Absorber Range is developed for the 4wd  owner who only pursues the best for their 4wd. EFS is built with high  quality Internal & external components combined together to give you  excellent performance and longevity. EFS shock absorbers are vehicle  & height specific with valving developed to suit each vehicle. "Not a  one shock suits all approach"



Specifications


  • 51mm - 60mm External Tube - Greater oil capacity to keep the valve at a lower operating temperature
  • Low Pressure Nitrogen Gas - Prevent the oil from cavitating (foaming)
  • Long Travel Design - Maximises wheel articulation
  • 35mm Piston, Twin Tube Construction - Increased control of the spring during rebound and compression cycles
  • 16mm Quality Hardened Chromed Piston Rod Longer service life, and greater lateral strength
  • 1.5mm Outer & Inner Wall Thickness Greater durability and strength
  • Dynamic Motion Control Valve - Adjusts to different road & off road conditions
  • Polyurethane and rubber bushes – HI quality elastomer and rubber mounting bushes to suit specific applications

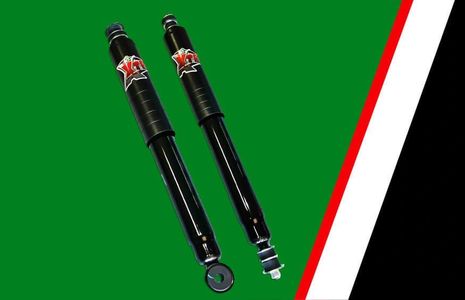

EFS XTR Series

EFS X-TREME Series

EFS X-TREME Series




The EFS XTR Shock Absorber Range is developed specifically for  the Out-back off-road Tourer, with a heavily laden 4wd. It is Improved  with increased oil capacities to reduce operating temperatures and  incorporates a highly robust construction to take on the worst  Australian Out-back roads. EFS XTR shock absorber are designed &  developed to suit each vehicle and are not a one shock suits all  approach. They are constructed from high quality internal and external  components to meet the demands of the modern 4wd.



Specifications


  • 64mm External Tube - Greater oil capacity to keep the valve at a lower operating temperature
  • Low Pressure Nitrogen Gas - Helps prevent the oil from cavitating (foaming)
  • Long Travel Design - Maximises wheel articulation
  • 40mm Piston, Twin Tube Construction - Increased control of the spring during the rebound and compression cycles
  • 20mm Quality Hardened Chromed Piston Rod - Longer service life, and greater lateral strength
  • 2 mm Outer & Inner Wall Thickness - Greater durability and strength
  • Dynamic Motion Control Valve - Adjusts to different road & off road conditions Vehicle & Height Specific Valving
  • Mounting bushes – EFS use long life polyurethane & rubber bushes dependant on application

EFS X-TREME Series

EFS X-TREME Series

EFS X-TREME Series




The EFS X-Treme range of shocks and  struts is our premium offering, with a well-respected and established  reputation in the competition/retail market. Born over a decade ago  through the demands of 4WD competition, and refined to be one of the  toughest family friendly suspension solutions on the market today.  Offering unsurpassed durability, handling and ride quality across the  gamut of unsealed corrugated outback tracks and highly strenuous  off-road environments.

...are you ready to enjoy your next 4WD adventures to the X-TREME?



Specifications


  • Over-sized Eye Rings & Pin Mounts
  • 20mm Hardened Chrome Piston Rod
  • Durable Over-sized Concertina Dust Boot
  • 2mm H/D External Wall Thickness
  • Internal Hydraulic Rebound Stop
  • Bonded Rubber Eye Bushes
  • Special High Temperature Fluid
  • Quality Multi-lip Viton Seal
  • High Strength Iron Piston Rings
  • Large 45mm Bore
  • Twin Tube Hydraulic Design
  • Dynamic Motion Control Valve

EFS Suspension SPrings & components

EFS Steering Dampers

EFS Steering Dampers

EFS Steering Dampers


 EFS steering dampers provide an unmatched steering control &  reliability. Designed with increased valve forces to aid in the control  of over sized tyres that increase bump steer and side load forces.

EFS Coil Springs

EFS Steering Dampers

EFS Steering Dampers


 EFS Coil Springs are manufactured under a strict quality control system  with the use of quality Spring steel in accordance with ISO-9002. This  ensures you are purchasing a high quality product that is backed by a 3  year/100,000km warranty. EFS Coil Springs are produced in a variety of  raised heights, From standard to 125mm & also a variety of spring  rates to suit different applications - Towing, Load bearing accessories,  Increased ride height & Competition.

EFS Leaf Springs

EFS Steering Dampers

EFS Leaf Springs




EFS Multi-Leaf Springs are made from high quality Japanese grade SUP9 & SUP9A Alloyed Carbon spring steel.
Designed  as a comfort Leaf Spring that incorporates special features , to give  the driver a comfortable ride on road & increased control off road  with increased articulation & clearance. Available in 30mm to 80mm  raised heights with a slight increase in spring rates over the original  equipment.

EFS Torsion Bars

EFS Torsion Bars

EFS Leaf Springs


 The EFS Torsion Bar is increased in strength by 25% to 30% over the  standard O.E Bar. Just as Coil Springs & Leaf Springs fatigue &  sag so do Torsion Bars. The EFS Torsion Bar will provide you with  increased handling & response from your vehicle & compensate for  extra loads.

Bush Kits

EFS Torsion Bars

Components


 EFS Polyurethane Bushes are made from high quality elastomers which  gives the EFS Polyurethane Bush a high isolating strength & durable.  EFS poly bushes have an elastomer rating of 80 Duro to give improved  suppleness & grease channels for increased distribution of  lubrication.properties.

Components

EFS Torsion Bars

Components


 EFS carry a wide range of suspension components including pins &  shackles, caster bush kits, drop drag link, u-bolts and many more items  that are usually hard to find when performing suspension lifts and  modifications.
